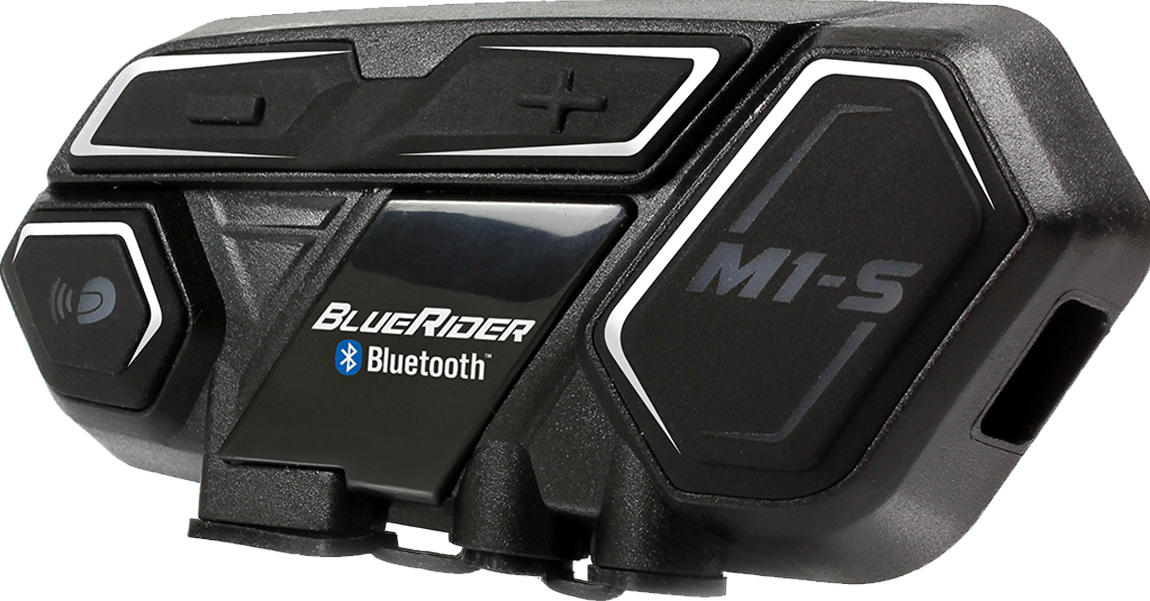

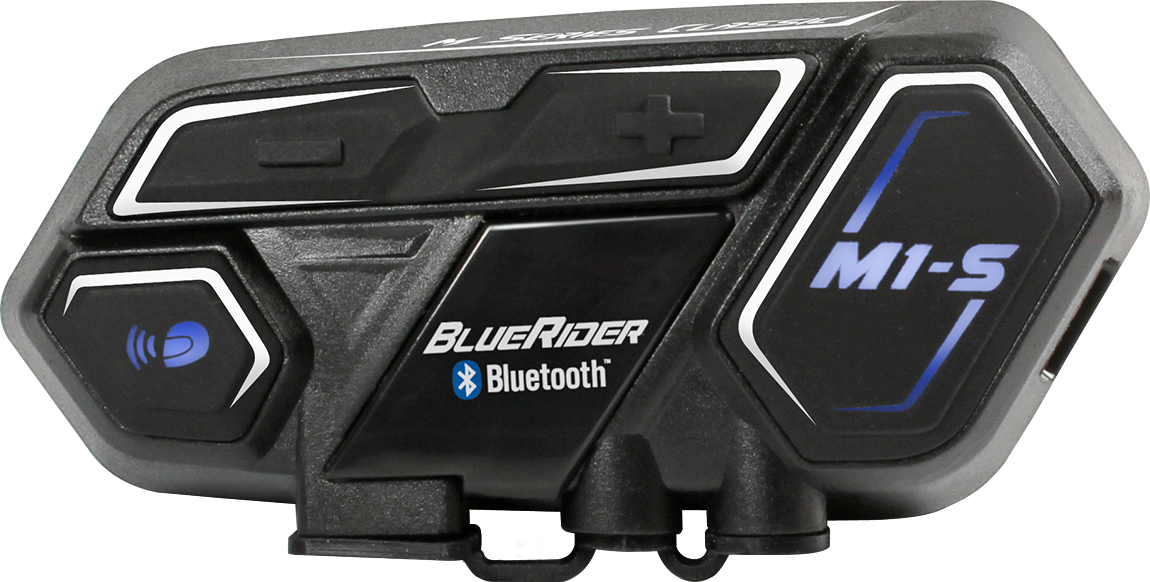

Introduction of BlueRider M1-S/M1-S EVO

Dimton technology officially launched the BlueRider in 2016 which offers riders of complete plans of audio integration.

Brand new Bluetooth 4.1; brand new riding experience

Equipped with the new BlueCore 4.1, M1-S/M1-S EVO helmet Bluetooth headset is greatly advanced in connection speed, intercom stability and voice integration. The outline of microphone is newly designed, deploying tested microphone sponge, significantly to reduce the physical noise received to the microphone such as from wind, touch and vibration. Along with new Clear Voice Capture (CVC, digital active echo-cancellation and noise-suppression technology), the wind and engine noise produced under high-speed riding can be filtered. It is the combination of software and hardware dual noise suppression technology that promises a refreshing feeling of the communication quality.


Newly designed headset, provides better audio quality

ø30mm High-quality Speaker

How to provide high-quality audio message within the limited helmet liner to the riders has always been our attention. The selected 30mm full-range diaphragm can be easily installed in all kinds of narrow liner space. Meanwhile, the featured speaker offers complete, high-quality audio enjoyment from bass to treble. We hope to lets all users have high standard audio quality at all costs.

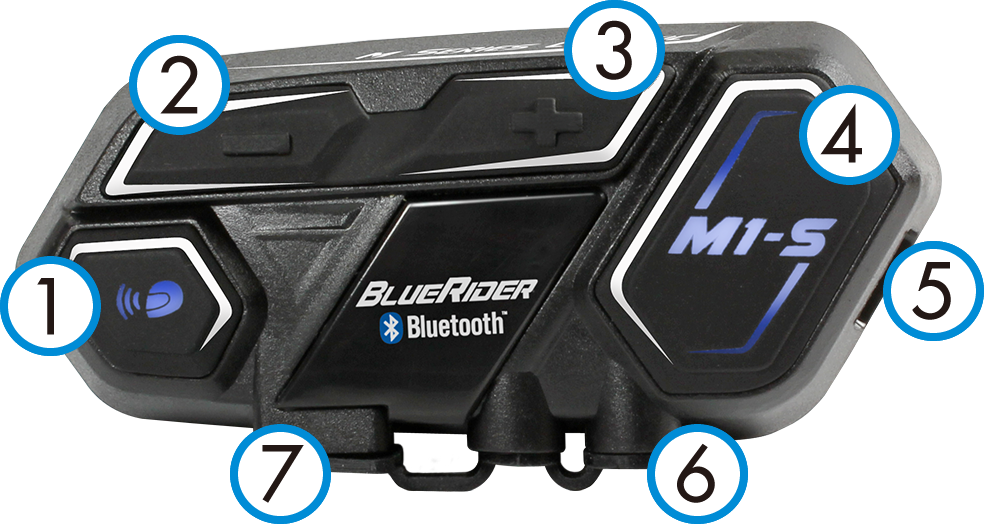

M1-S/M1-S EVO Details

  • 1. intercom
  • 2. Volumn-
  • 3. Volumn+
  • 4. Functions
  • 5. headset/ speaker port
  • 6. Audio input port
  • 7. charge port

anti-noise speaker

anti-noise speaker

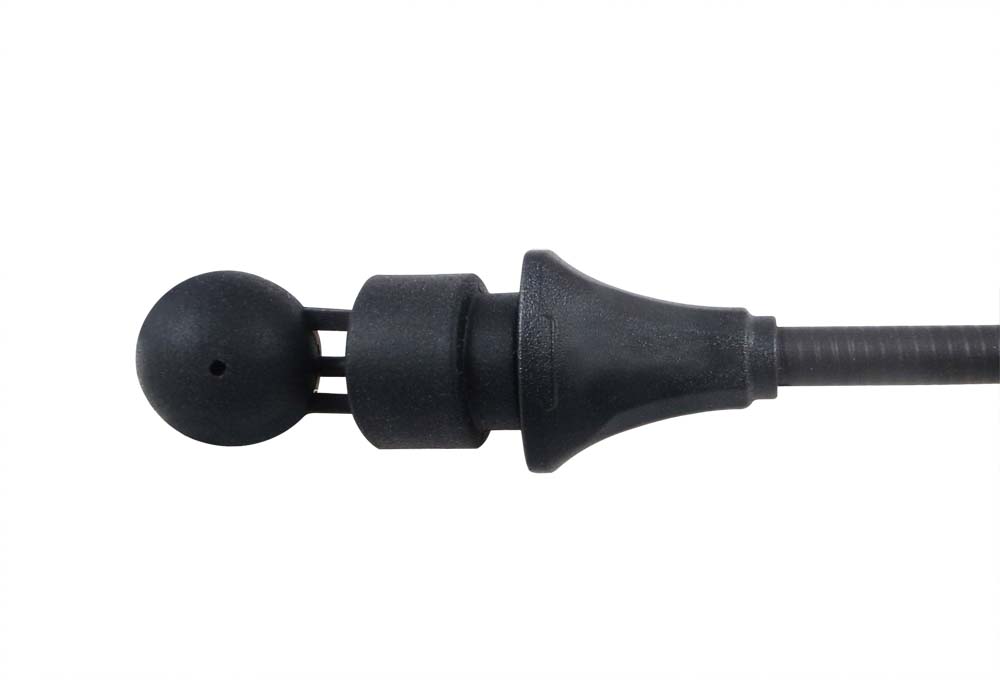

Newly designed M1-S/M1-S EVO microphone, compatible with tested microphone sponge, significantly reduces the physical noise received to the microphone such as from wind, touch and vibration.

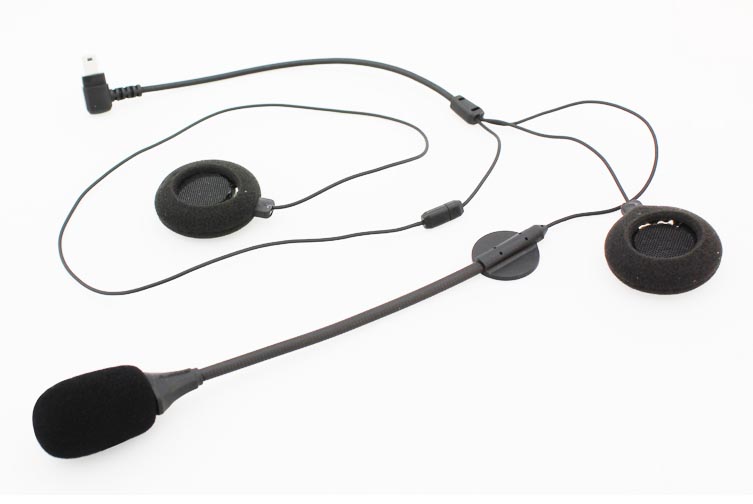

M1-S/M1-S EVO helmet kit

There is no holder in the M1-S/M1-S EVO helmet kit so the Bluetooth headset can be removed from helmet without worry that the holder could damage the helmet. When removing the Bluetooth headset from helmet, it is recommended to fit the headset line into the helmet liner.


M1-S/M1-S EVO functions

To understand the functions of M1-S/M1-S EVO Bluetooth headset, please click each entry for instruction.。


Specifications

  • Product Name:BlueRider M1-S/M1-S EVO
  • Bluetooth version:v4.1
  • Bluetooth Protocol:HSP、HFP、A2DP、AVRCP、SPP、CVC
  • Operating Frequency:2402~2408 MHz
  • Operating Distance:500 M
  • Service time:10hr
  • Size: 86mm :86mm x 40mm x 27mm
  • Speaker Size: φ30mm Drive Unit, 4.9mm thick.
  • Charging Interface:Micro USB
  • NCC:CCAL16LP0330T3


    M1-S/M1-S EVO set includes:

    • 1、M1-S/M1-S EVO Bluetooth headset x 1
    • 2、Helmet kit ( including speaker, headset, sticker accessories) *1
    • 3、3M™ Dual Lock™ Buckle *3(M1-S EVO/METAL CLIP、HELMET BRACKET、HELMET BRACKET)
    • 4、OEM MicroUSB cable *1
    • 5、2.5mm to 3.5 mm audio cable *1
    • 6、 Installation Instruction *1
    • 7、Operating Instruction *1

With the latest generation of digital Bluetooth anti-noise technology, your voice can be free from the limit of speed and sounds like close at hand.

The newly designed Mi-S microphone, deploying tested microphone sponge, significantly reduces the physical noise received to the microphone such as from wind, touch and vibration. Along with new Clear Voice Capture (CVC, digital active echo-cancellation and noise-suppression technology), the wind and engine noise produced under high-speed riding can be filtered. It is the combination of software and hardware dual noise suppression technology that promises a refreshing feeling of the communication quality.

Advanced digital signal processing technology provides you with more convenient group communication and real-time information transmission.

The function of multi-person intercom that only showed up in the high-end models in the past appears in the new M1-S/M1-S EVO Bluetooth headset! Throughout the multi-person intercom technology, riders can have unimpeded conversation while riding and obtain a refreshing experience without spending money on auxiliaries.

Provide sufficient battery life for long-distance riding.

Equipped with larger battery for the new model; the battery life of the Bluetooth headset increases dramatically. The riding quality affected by the power shortage will never be the problem after the whole-day use. Dimton technology especially pays deep attention on the power system of Bluetooth headset. It can be used while charging. With the portable charger, its battery life is nearly endless.

(Tip: please do not charge the Bluetooth headset with USB charger equipped in the car. The poor power quality may significantly decline the battery life or cause failure.)

The digital signal synchronizing technology makes the ride fun by sharing audio altogether.

To enjoy the convenience of riding, many riders equip their heavy motorcycle with navigation devices, Bluetooth speedometer or even the upcoming AD-100 Bluetooth integrator to integrate different riding information. However, in the past, the passenger at the back seat could not receive those messages so seemed to be less participation than the rider. Throughout the digital signal synchronizing technology, the foresaid riding information can be shared via intercom from riders to passenger. The backseat passenger can be more into the easy ride.

Selected diaphragm of the best quality provides better audio enjoyment.

How to provide high-quality audio message within the limited helmet liner to the riders has always been our attention. The selected 30mm full-range diaphragm can be easily installed in all kinds of narrow liner space. Meanwhile, the featured speaker offers complete, high-quality audio enjoyment from bass to treble. We hope to lets all users have high standard audio quality at all costs.

The designed voice notification lets you grasp information from headset at all times.

Based on the core functions of BluetoothTMv4.1, we introduced the voice notification to the Bluetooth helmet. There will be voice prompts on the switch, power detection, Bluetooth matching and so on. Riders can precisely realize all the conditions of the device. With advanced voice function to launch the audio input on the smart devices, riders can really enjoy the convenience of those smart devices.

BlueRider M1-S/M1-S EVO Functions

Bluetooth 4.1

The core version was advanced to BluetoothhTM v4.1 and as well as the great improvement of connection speed and quality.

Multi-person intercom mode

The new intercom mode supports multi-person connections at the same time, which make it more convenient for the travel of motorcade.

500 m connection distance

The function of long-distance connection promises at least 500 m connection distance from device to device.

CVCdigital noise suppression

The digital noise suppression can further lower the noise that had been already declined by physical isolation. It dramatically improves the communication clarity.

10 hours service time

The large-capacity battery can care about the whole-day usage perfectly. It can be used while charging, which eases your worry to the power shortage when traveling for several days.

ø30mm single speaker

The strictly-selected, specifically-advanced diaphragm of high quality single speaker not only facilitates easy installation but presents the details of music clearly.

anti-windshear microphone

The newly designed microphone head can effectively suppress the windshear and the touching buzz to enhance the communication quality.

Voice notification

It is more convenient for users to grasp the conditions of device and battery more promptly by voice notification.

water-proof

The chassis structure and cable port are completely water-proof. It can be used as normal when riding in the rain and no worry of the weather interference in your tour.

Music play

M1-S/M1-S EVO can play the music. Via Bluetooth headset, you can select functions such as 'previous', 'next' and 'pause' when playing music.

Receive calls

Connecting with cell phone via Bluetooth to receive/ hang up / reject the calls.

Update online

It can be connected to the computer through digital cable to update the firmware and deal with different requirements.

Let's Riding Together!

BlueRider M1-S/M1-S EVO for online sale

We will use Amazon as our official online stores and launch variety of special offers from time to time to reward our customer riders in the future. Welcome to visit our company for a trail or purchase.
